Commercial Automatic Swing Door Opener with RFID Card Reader

Olide-120B automatic swing door opener is a kit that can not only open automatically, but also open manually. When there is a power failure or an emergency, you can open the door by hand, which is safer than a fully automatic door opener.

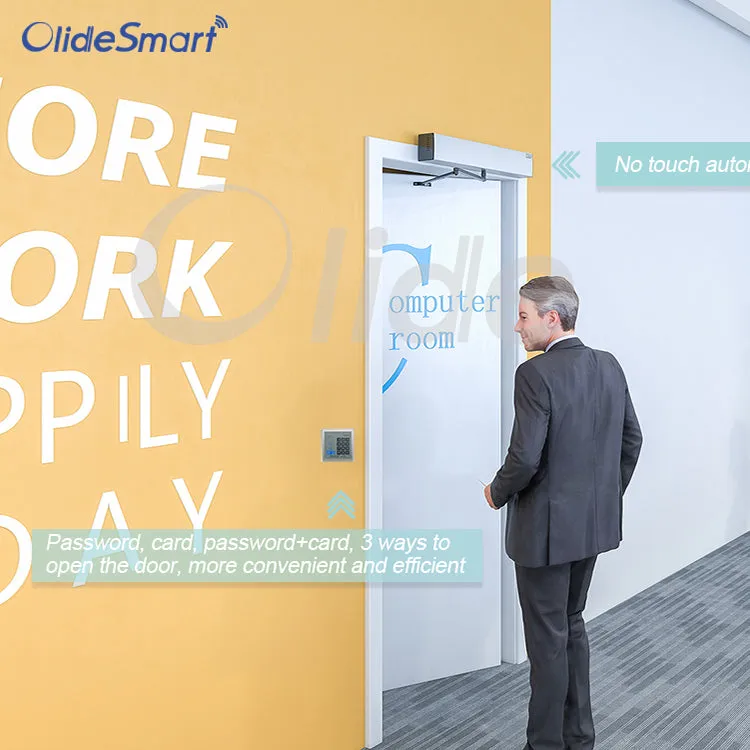

With RFID card reader and passive infrared sensor, it will be more suitable for use in some commercial and office places. The card reader can restrict the entry and exit of irrelevant personnel, and it is more convenient to exit the door by sensor. Offices, hospitals, and banks are all suitable.

Commercial Automatic Swing Door Opener Features

  • Password, card and password card 3 ways can open the door, up to 1000 cards can be input;
  • Non-touch opening door with PIR sensor and card reader, convenient and efficient;
  • Wide voltage design, no need transformer, voltage 100-240V universal;

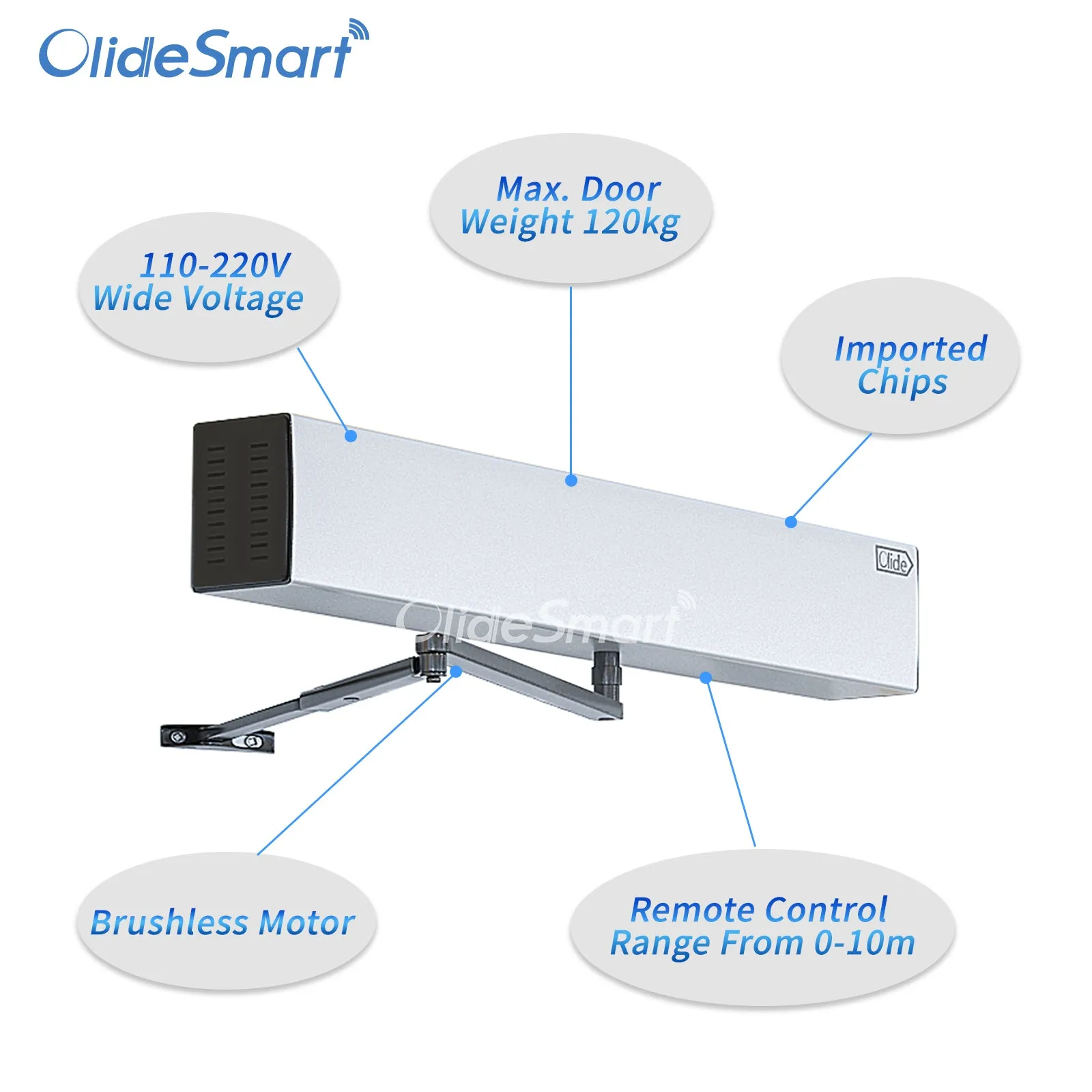

  • Imported motor, built-in intelligent chip controller, the door opener is smarter, safe and durable;
  • Both inswing and outswing door are available;

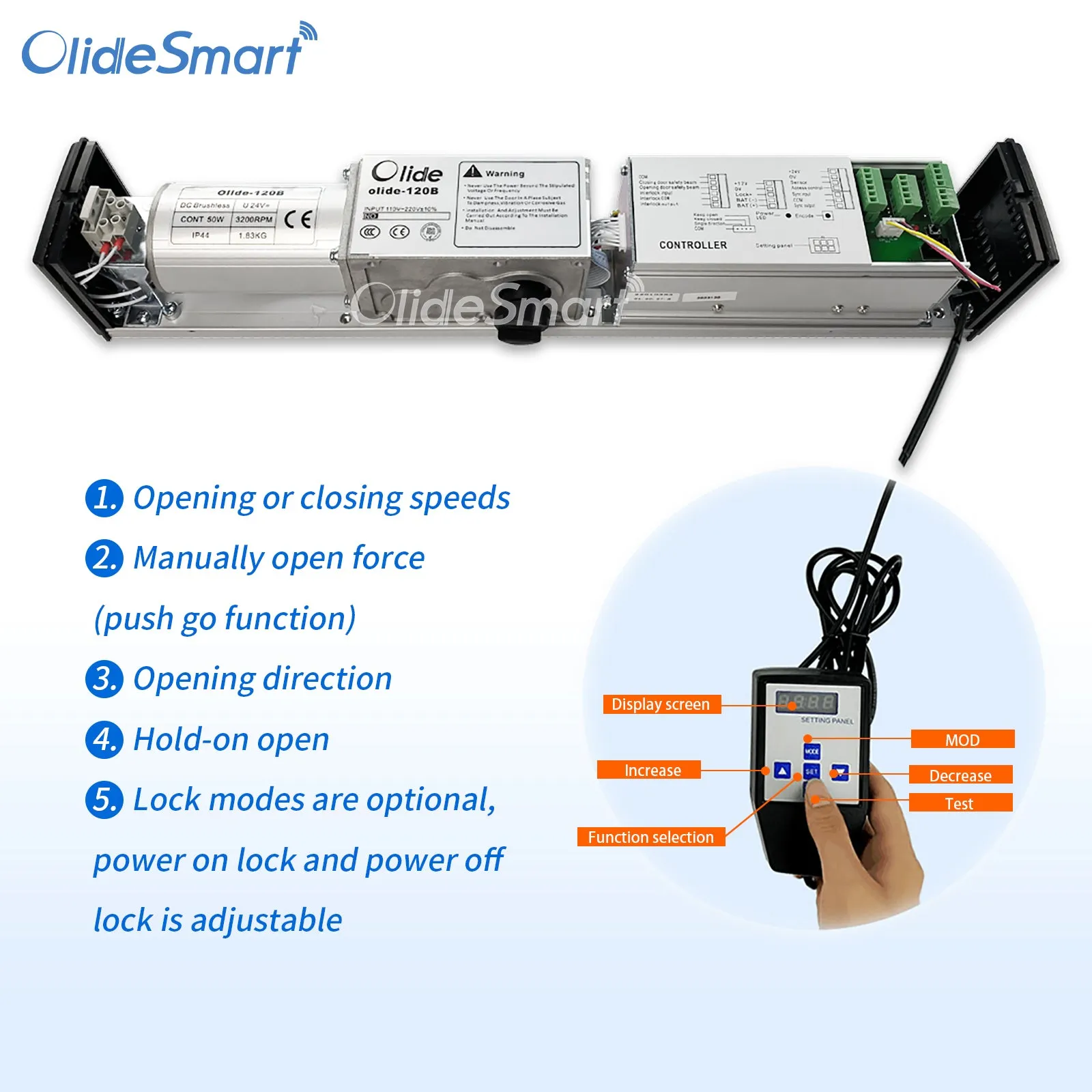

  • Easily program parameters with debugging handle, such as opening direction, closing speed, closing force, etc...;
  • 880lbs electric lock, can be used in power-off or power-on state;
  • Wireless 433.92MHz remote control, multiple units can be coding with 1 remote control, can be opened and closed at the same time;

Technical Parameters

Olide-120B automatic swing door opener

 Voltage:  110-220 VAC /-10%  Power Consumption:  50W
 Opening Time:  3-7 sec. @ 90 degrees  Hold Open Time:  1-30 sec. Adjustable

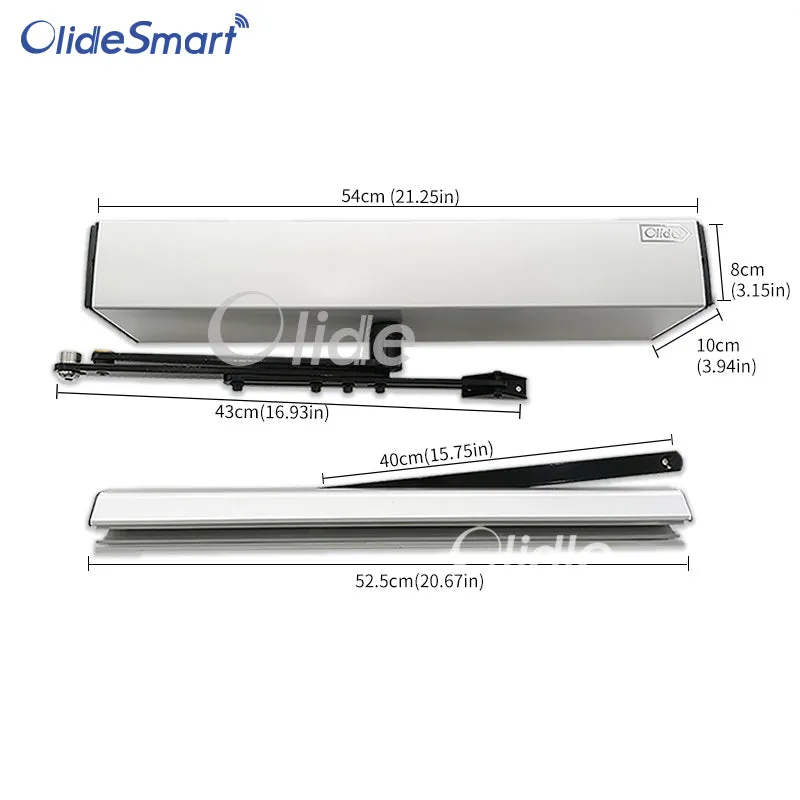

 Max. Door Frame Depth:  450mm / 17.7"  Door Width:

Min. 660mm / 26"

Max. 1200mm / 47.2"

 Max. Opening Angle:  120 degrees  Environment Temperature:

-20C to 50C

-4F to 122F

 Protection Class:  IP12D


RFID Card Reader

 Model: AD-2000M  Color: Grey
 Working Voltage:  DC 12V- 10%  Starage Capacity:   1000cards, 1password
 Quiescent Current: <=60mA  Card Type:  EM(ID) card or EM Compatible card
 Unlocking Current:  <=1000mA  Reading Distance:  5-15cm

 Ambient

Temperature:

-10°C - 55°C  Size:

 4.6*4.6*0.8inch

(117*117*21mm)

Environment

Humidity:

 20% - 90%

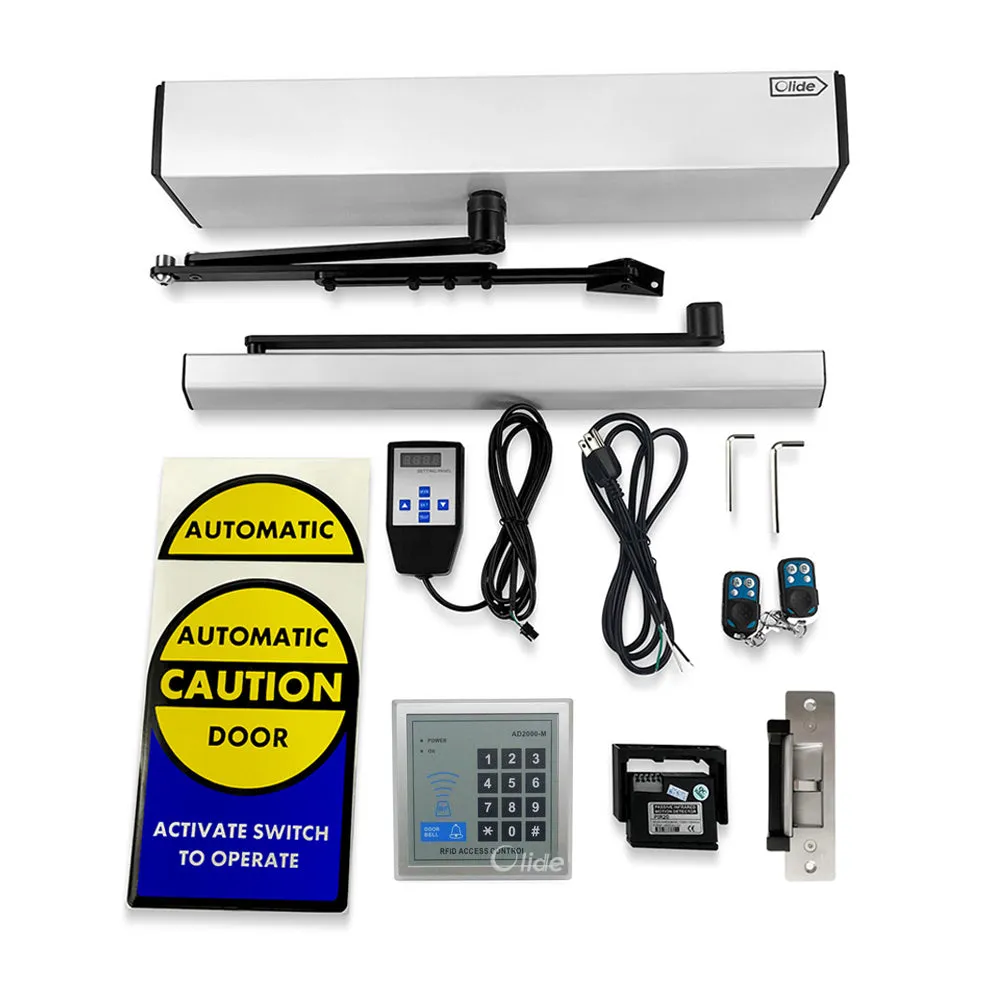

Non-touch Commercial Automatic Swing Door Opener with RFID Card Reader PIR Sensor and 880lbs Electric Lock
  • DefaultTitle

$ 83.17

$ 63.98
